110KW 220KW 900M3/H Stainless Steel Well Pump Landscape Waterfall

  • 1
  • 2
  • 3

Brand Name : APK

Model Number : QJH

Certification : ISO;CE,BV; TUV; CCC

Place of Origin : Henan China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 9863 sets per month

Delivery Time : Within 2-5 working days upon receipt of payment

Packaging Details : Seawater submersible pump is packed by wooden case or as your request.

Name : 110KW 220KW 900M3/H Stainless Steel Well Pump Landscape Waterfall

Head : 15-325m

Flow : 74-1400m3/h

Power : 110kw 220kw

Voltage : 380v-1140v

Frequency : 3 Phase 50hz/60hz

Motor : 100% Copper Wire

Material : SS304/SS316/SS316L

Contact Now

110KW 220KW 900M3/H Stainless Steel Well Pump Landscape Waterfall

110KW 220KW 900M3/H Stainless Steel Well Pump Landscape Waterfall Brief Introduction:

The selection of the submersible pump of the fountain pump before use is very important. The type of the pump should be selected according to the actual situation of the water source, the working time and the pump water volume and other requirements. Special pump experts for fountains teach you how to use submersible pumps: Environmental requirements for the use of submersible pumps for fountain pumps

1. The fountain pump has a safe and reliable power supply.

2. The drop between the outlet pipe and the water surface of the pool should be smaller than the lift.

3. Choose a relatively clean water source.

110KW 220KW 900M3/H Stainless Steel Well Pump Landscape Waterfall Model:

Model Motor Power Flow Range Head Range
QJ Series kW hp m3/h m
250QJH80-280/14 110 150 74-86 235-325
250QJH125-192/12 110 150 116-134 163-220
250QJH140-165/11 110 150 143-188 158-162
250QJH160-150/10 110 150 186-214 128-170
300QJH300-80/4 110 150 279-321 68-92
300QJH500-45/3 110 150 460-540 43-47
550QJH1200-18/1 110 150 1100-1400 15-22
600QJH800-25/1 110 150 750-850 23-27
600QJH1000-20/1 110 150 900-1200 18-22
300QJH400-120/3 220 299 368-432 117-123
300QJH500-90/6 220 299 460-540 87-93
600QJH800-50/2 220 299 750-850 48-52
600QJH1000-40/2 220 299 900-1200 38-42

900M3/H Stainless Steel Well Pump Landscape Waterfall Fountain Pump Operation:

1. The submersible pump of the fountain pump should work at the planned working point. The axial force is moderate at this moment. The research on the special pump for fountains found that the pump efficiency is the highest when operating at the planned point. The most economical and reliable.

2. The submersible pump of the fountain pump should be fully inspected every 8 hours of operation. Whether the appearance of each has changed. Circuit node is not hot. Is the sound normal? Is the normal operating current greater than the rated value of the motor nameplate?

110KW 220KW Stainless Steel Well Pump Landscape Waterfall Stop The Pump:

Before the submersible pump of the fountain pump stops. To prevent backflow of water. The fountain special pump reminds you: close the valve while cutting off the power supply. When starting from scratch, the distance is more than 20 minutes.

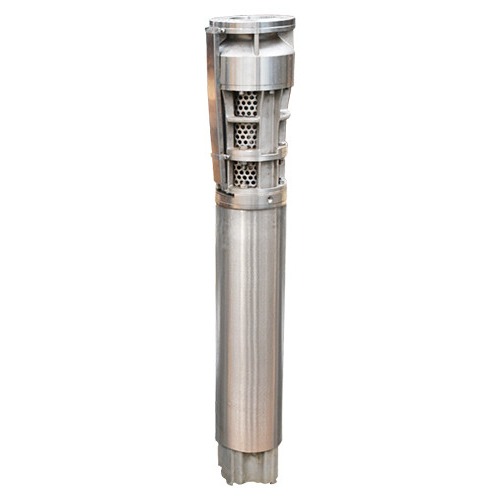

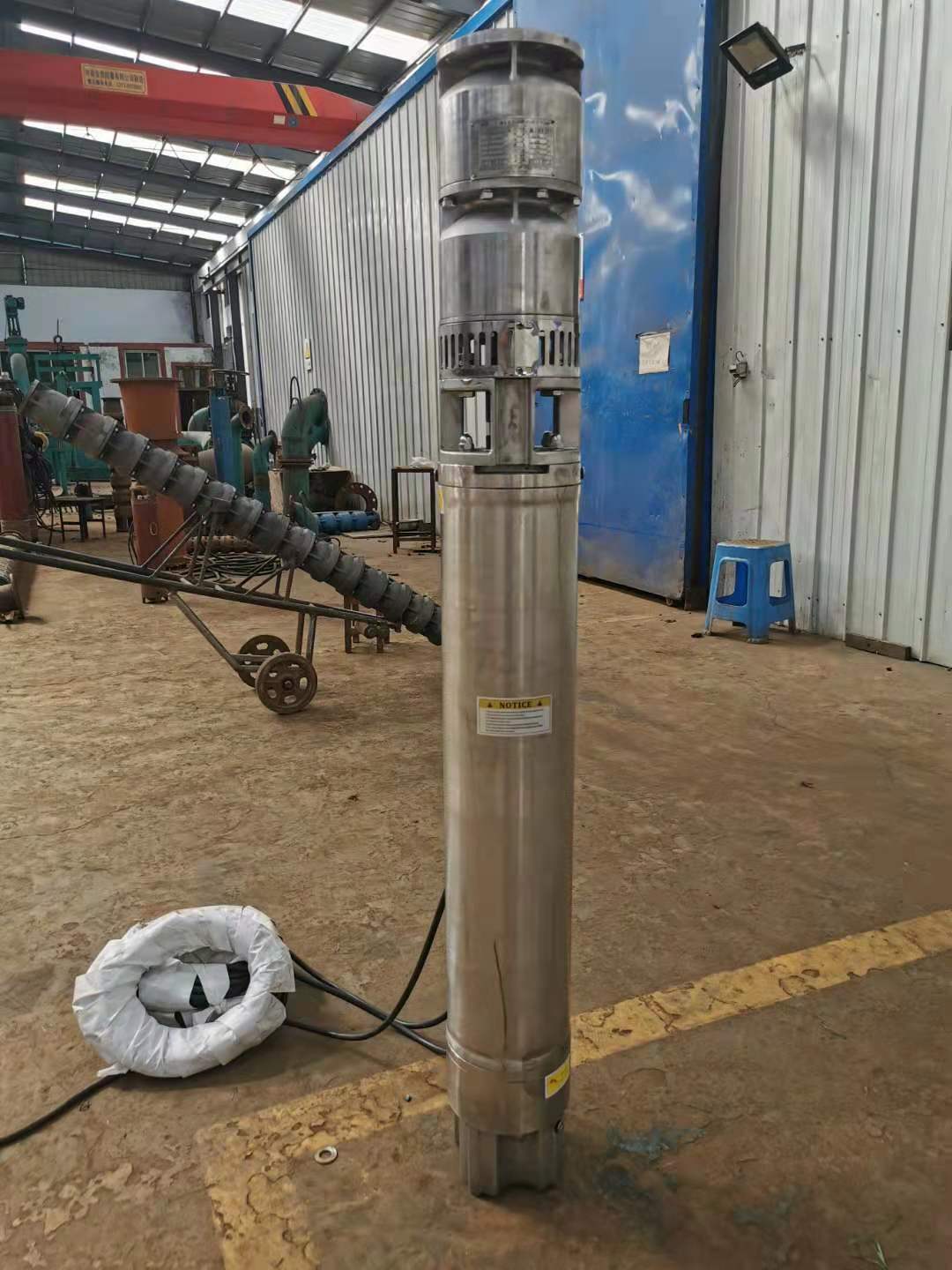

110KW 220KW 900M3/H Stainless Steel Well Pump Landscape Waterfall Photo:

110KW 220KW 900M3/H Stainless Steel Well Pump Landscape Waterfall110KW 220KW 900M3/H Stainless Steel Well Pump Landscape Waterfall110KW 220KW 900M3/H Stainless Steel Well Pump Landscape Waterfall

If these seawater submersible pump parameters do not meet your requirements, please feel free to contact us. We will choose one suitable pump model for you.
