Long Shaft Water Pump 524m3/H Municipal Drainage
Long Shaft Water Pump 524m3/H Municipal Drainage Introduction:
Vertical long shaft turbine submersible pump is an advanced and mature series of pumps developed by our company on the basis of absorbing the advanced experience in the design and manufacturing of vertical long shaft pump at domestic and abroad, which combined with the market demand. Special design by our technical department, the temperature of conveying medium can reach 105 ℃.
Long Shaft Water Pump 524m3/H Municipal Drainage Model:
| Type | Capacity | Head | Shaft Power | Motor Power |
| m3/h | l/s | m | kw | kw | Type |
| 250LC-24 | 524 | 144.9 | 24 | 43.4 | 55 | YE2-250M-4 | 79 |
| 250LC-34 | 524 | 145.6 | 34 | 61.9 | 90 | YE2-280M-4 | 78.5 |
| 250LC-52 | 524 | 145.6 | 51.8 | 94.8 | 132 | YE2-315M-4 | 78 |
| 250LC-34×2 | 524 | 145.6 | 68 | 123.7 | 160 | YE2-315L-4 | 78.5 |
| 250LC-34×3 | 524 | 145.6 | 102 | 185.6 | 250 | YL450-4 | 78.5 |
| 250LC-34×4 | 524 | 145.6 | 136 | 247.4 | 315 | YL450-4 | 78.5 |
| 250LC-52×3 | 524 | 145.6 | 155.3 | 284.4 | 355 | YL450-4 | 78 |
| 250LC-34×5 | 524 | 145.6 | 170 | 309.3 | 400 | YL450-4 | 78.5 |
| 250LC-52×4 | 524 | 145.6 | 207.1 | 379.2 | 450 | YL450-4 | 78 |
| | | | | | | | | |
Long Shaft Water Pump 524m3/H Municipal Drainage Model Other Model:
| Type | Capacity | Head | Shaft Power | Motor Power | Eff. |
| m3/h | l/s | m | kw | kw | Type | % |
| 150LC-20 | 100 | 27.8 | 20 | 7.1 | 11 | YE2-160M-4 | 77 |
| 150LC-7 | 181 | 50.4 | 7.4 | 4.7 | 7.5 | YE2-132M-4 | 77 |
| 150LC-13 | 181 | 50.3 | 13 | 8.3 | 15 | YE2-160L-4 | 77 |
| 150LC-18 | 188 | 52.2 | 18 | 12 | 18.5 | YE2-180M-4 | 76.5 |
| 150LC-26 | 187 | 52 | 26 | 17.5 | 30 | YE2-200L-4 | 76 |
| 150LC-18×2 | 188 | 52.2 | 36 | 24.1 | 30 | YE2-200L-4 | 76.5 |
| 150LC-18×3 | 188 | 52.2 | 54 | 36.1 | 55 | YE2-250M-4 | 76.5 |
| 150LC-18×4 | 188 | 52.2 | 72 | 48.2 | 75 | YE2-280S-4 | 76.5 |
| 150LC-18×5 | 188 | 52.2 | 90 | 60.2 | 75 | YE2-280S-4 | 76.5 |
| 150LC-18×6 | 188 | 52.2 | 108 | 72.3 | 110 | YE2-315S-4 | 76.5 |
| 150LC-26×2 | 187 | 52 | 52.1 | 34.9 | 45 | YE2-225M-4 | 76 |
| 150LC-26×3 | 187 | 52 | 78.1 | 52.4 | 75 | YE2-280S-4 | 76 |
| 150LC-26×4 | 187 | 52 | 104.2 | 69.9 | 90 | YE2-280M-4 | 76 |
| 150LC-26×5 | 187 | 52 | 130.2 | 87.3 | 110 | YE2-315S-4 | 76 |
| 150LC-26×6 | 187 | 52 | 156.3 | 104.8 | 132 | YE2-315M-4 | 76 |
| 200LC-7 | 335 | 93.1 | 7.7 | 9.1 | 15 | YE2-160L-4 | 77.5 |
| 200LC-11 | 336 | 93.4 | 11.2 | 13.1 | 18.5 | YE2-180M-4 | 78 |
| 200LC-21 | 360 | 100 | 21 | 26.4 | 37 | YE2-225S-4 | 78 |
| 200LC-26 | 336 | 93.2 | 26.5 | 31.2 | 45 | YE2-225M-4 | 77.5 |
| 200LC-38 | 334 | 92.8 | 38.3 | 45.3 | 75 | YE2-280S-4 | 77 |
| 200LC-21×2 | 360 | 100 | 42 | 52.8 | 75 | YE2-280S-4 | 78 |
| 200LC-21×3 | 360 | 100 | 63 | 79.2 | 110 | YE2-315S-4 | 78 |
| 200LC-21×4 | 360 | 100 | 84 | 105.6 | 132 | YE2-315M-4 | 78 |
| 200LC-21×5 | 360 | 100 | 105 | 132.1 | 185 | YE2-315L-4 | 78 |
| 200LC-21×6 | 360 | 100 | 126 | 158.5 | 200 | YE2-315L-4 | 78 |
| 200LC-38×4 | 334 | 92.8 | 153.3 | 181.2 | 220 | YE2-355M-4 | 77 |
| 200LC-38×5 | 334 | 92.8 | 191.7 | 226.5 | 280 | YL450-4 | 77 |
| 250LC-7 | 531 | 147.6 | 7.1 | 13.2 | 18.5 | YE2-180M-4 | 78 |
| 250LC-10 | 535 | 148.5 | 10.6 | 19.6 | 30 | YE2-200L-4 | 78.5 |
| 250LC-15 | 522 | 144.9 | 15 | 26.9 | 37 | YE2-225S-4 | 79 |
| 250LC-24 | 524 | 144.9 | 24 | 43.4 | 55 | YE2-250M-4 | 79 |
| 250LC-34 | 524 | 145.6 | 34 | 61.9 | 90 | YE2-280M-4 | 78.5 |
| 250LC-52 | 524 | 145.6 | 51.8 | 94.8 | 132 | YE2-315M-4 | 78 |
| 250LC-34×2 | 524 | 145.6 | 68 | 123.7 | 160 | YE2-315L-4 | 78.5 |
| 250LC-34×3 | 524 | 145.6 | 102 | 185.6 | 250 | YL450-4 | 78.5 |
| 250LC-34×4 | 524 | 145.6 | 136 | 247.4 | 315 | YL450-4 | 78.5 |
| 250LC-52×3 | 524 | 145.6 | 155.3 | 284.4 | 355 | YL450-4 | 78 |
| 250LC-34×5 | 524 | 145.6 | 170 | 309.3 | 400 | YL450-4 | 78.5 |
| 250LC-52×4 | 524 | 145.6 | 207.1 | 379.2 | 450 | YL450-4 | 78 |
| 300LC-9 | 754 | 209.3 | 9 | 23.3 | 30 | YE2-200L-4 | 79 |
| 300LC-13 | 751 | 208.6 | 13.2 | 34.1 | 45 | YE2-225M-4 | 79.5 |
| 300LC-19 | 759 | 211 | 19.2 | 49.7 | 75 | YE2-280S-4 | 80 |
| 300LC-33 | 760 | 211.1 | 33.8 | 87.4 | 110 | YE2-315S-4 | 80 |
| 300LC-45 | 746 | 207.3 | 45.1 | 115.4 | 160 | YE2-315L-4 | 79.5 |
| 300LC-65 | 752 | 208.9 | 65.9 | 170.9 | 220 | YE2-355M-4 | 79 |
| 300LC-45×2 | 746 | 207.3 | 90.2 | 230.8 | 280 | YL450-4 | 79.5 |
| 300LC-65×2 | 752 | 208.9 | 131.7 | 341.7 | 450 | YL450-4 | 79 |
| 300LC-45×4 | 746 | 207.3 | 180.4 | 461.5 | 560 | YL450-4 | 79.5 |
| 300LC-65×3 | 752 | 208.9 | 197.6 | 512.6 | 630 | YL450-4 | 79 |
| 350LC-11 | 952 | 286.2 | 11.3 | 38.8 | 55 | YE2-250M-4 | 80 |
| 350LC-16 | 1039 | 288.6 | 16.4 | 57.8 | 75 | YE2-280S-4 | 80.5 |
| 350LC-23 | 1030 | 286.2 | 23.6 | 81.6 | 110 | YE2-315S-4 | 81 |
| 350LC-30 | 900 | 250 | 30.2 | 92 | 132 | YE2-315M-4 | 80.5 |
| 350LC-41 | 1034 | 287.1 | 41.5 | 144.2 | 185 | YE2-315L-4 | 81 |
| 350LC-52 | 1024 | 284.4 | 52 | 180.2 | 250 | YL450-4 | 80.5 |
| 350LC-81 | 1038 | 288.3 | 81.6 | 288.7 | 355 | YL450-4 | 80 |
| 350LC-52×2 | 1024 | 284.4 | 104 | 360.4 | 450 | YL450-4 | 80.5 |
| 350LC-52×3 | 1024 | 284.4 | 156 | 540.6 | 710 | YL500-4 | 80.5 |
| 350LC-52×4 | 1024 | 284.4 | 208 | 720.8 | 900 | YL500-4 | 80.5 |
| 400LC-13 | 1331 | 369.7 | 13.1 | 58.7 | 75 | YE2-280S-4 | 81 |
| 400LC-19 | 1345 | 373.5 | 19.5 | 87.8 | 110 | YE2-315S-4 | 81.5 |
| 400LC-27 | 1323 | 367.5 | 27.8 | 122.3 | 160 | YE2-315L-4 | 82 |
| 400LC-30 | 1400 | 389 | 30 | 139.6 | 185 | YE2-315L-4 | 82 |
Long Shaft Water Pump 524m3/H Municipal Drainage advantages:
high efficiency,
wide high efficiency area
high head
wide type spectrum coverage
flat head curve
no overload of power curve
long length below the foundation
It is used to transport clean water, river water, rainwater, sea water below 80 ℃, sewage containing certain solid particles (such as iron oxide scale, sand, pulverized coal)
corrosive industrial wastewater. Through special design, the temperature of conveying medium can reach 105 ℃.
Long Shaft Water Pump 524m3/H Municipal Drainage Application fields:
Iron and steel, metallurgical industry, thermal power plant, hydropower station, petrochemical industry, river, lake, reservoir, seaside water intake and fire control.
Win-win cooperation is the foundation of our business. We listen to our customers' requirements and provide best solutions accordingly with minimized cost. Best quality, fast delivery, good after sale service are our core values.
Product Tags:
|
|

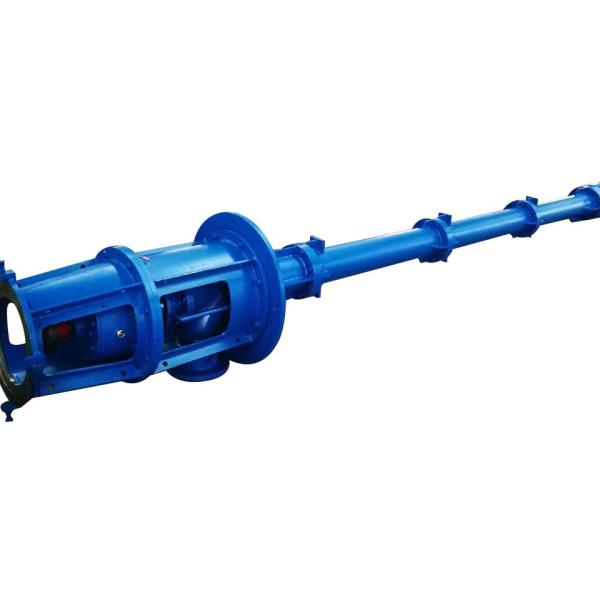

524m3/H Long Shaft Water Pump Municipal Drainage Stainless Steel Images
|
