50m3/h 200m 55kw 75hp Multistage Vertical Electric Sewage Water Bottom Suction Submersible Pump
Bottom suction submersible pump specifications:
1. Flow: 50m3/h
2. Head: 200m
3. Outlet diameter: 80mm
4. Power: 55kw 75hp
5. Voltage: 440v 60hz
6. Speed: 3450 rpm
7. Material: cast iron
8. Features: multi-stage, high head

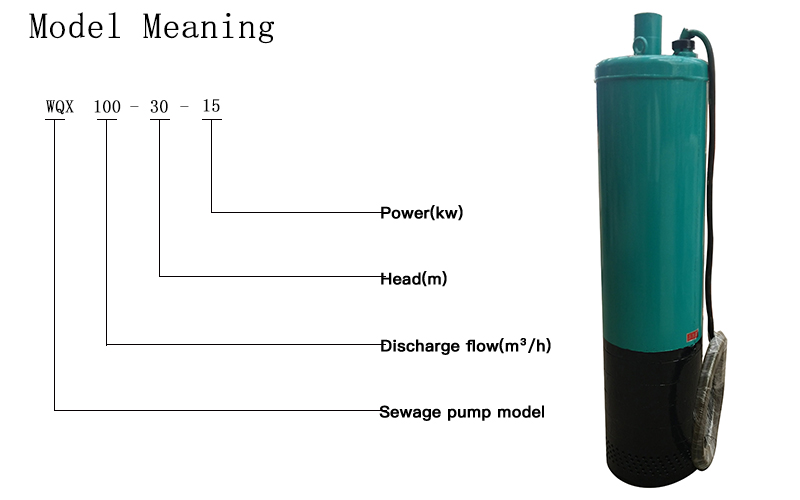

Bottom suction submersible pump models:
| Model | Discharge flow | Head | Power |
| WQX type | m3/h | m | kw |
| WQX12.5-40 | 12.5 | 40 | 3 |
| WQX12.5-60 | 12.5 | 60 | 4 |
| WQX12.5-80 | 12.5 | 80 | 5.5 |
| WQX12.5-100 | 12.5 | 100 | 7.5 |
| WQX12.5-120 | 12.5 | 120 | 9.2 |
| WQX12.5-140 | 12.5 | 140 | 11 |
| WQX12.5-160 | 12.5 | 160 | 15 |
| WQX12.5-180 | 12.5 | 180 | 18.5 |
| WQX15-30 | 15 | 30 | 3 |
| WQX15-50 | 15 | 50 | 4 |
| WQX15-70 | 15 | 70 | 5.5 |
| WQX15-110 | 15 | 110 | 9.2 |
| WQX15-150 | 15 | 150 | 13 |
| WQX15-190 | 15 | 190 | 18.5 |
| WQX20-80 | 20 | 80 | 7.5 |
| WQX20-120 | 20 | 120 | 15 |
| WQX20-145 | 20 | 145 | 18.5 |
| WQX20-170 | 20 | 170 | 22 |
| WQX30-45 | 30 | 45 | 9.2 |
| WQX30-85 | 30 | 85 | 13 |
| WQX30-105 | 30 | 105 | 15 |
| WQX30-125 | 30 | 125 | 18.5 |
| WQX30-150 | 30 | 150 | 22 |
| WQX40-20 | 40 | 20 | 5.5 |
| WQX40-60 | 40 | 60 | 13 |
| WQX40-100 | 40 | 100 | 22 |
| WQX50-60 | 50 | 60 | 15 |
| WQX50-100 | 50 | 100 | 30 |
| WQX50-120 | 50 | 120 | 37 |
| WQX50-140 | 50 | 140 | 45 |
| WQX50-160 | 50 | 160 | 55 |
| WQX50-200 | 50 | 200 | 63 |
| WQX70-40 | 70 | 40 | 13 |
| WQX80-40 | 80 | 40 | 15 |
| WQX80-65 | 80 | 65 | 25 |
| WQX100-20 | 100 | 20 | 13 |
| WQX100-60 | 100 | 60 | 30 |
| WQX100-120 | 100 | 120 | 63 |

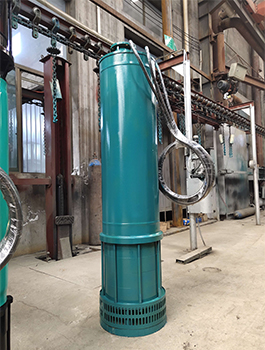

Details of bottom suction submersible pump:
WQX is one sewage pump type that has high head lift, max head could be 300m, also it is multistage,
The pump is a bottom suction type, capable of draining the surface water on the working surface; the electric
motor is a submersible three-phase asynchronous motor: small footprint, convenient installation and use, high durability and long life
Bottom suction submersible pump performance range:
1. outlet diameter: as per request
2. Discharge flow: 12.5-600m3/h
3. Head: 17-300m
4. Power: 4kw-220kw
5. Speed: 2900 r/min, 3450r/min
6. Voltage: 380v/420v or another
Bottom suction submersible pump features:
1. Can work above water leave
2. High pumping head
3. Titanium alloy mechanical sealing: wear-resistant,anti-resistant, good heat resistance
4. No clogging, good performance for particulate impurities
FAQ:
1. What is your MOQ?
our MOQ is 1 piece.
2. How do we order products?
please kindly contact us, we choose one submersible pump type to suitable your local site, and then send a formal quotation.
3. Where is your factory?
our factory is located in China, brand is APK.
