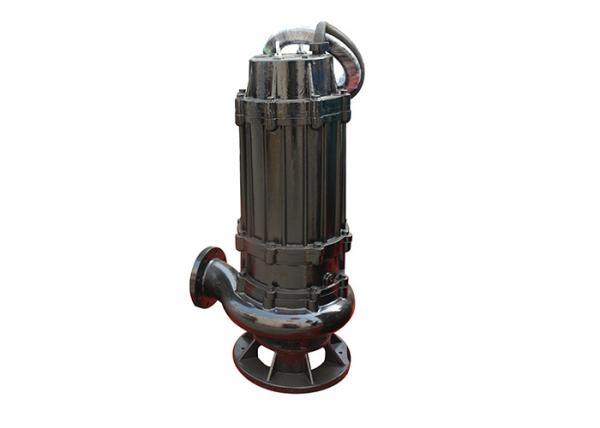

china 15hp non clog fecal dirty waste water vertical submersible sewage pump
Submersible sewage pump details:
Sewage pump types hace submersible type and dry type, high temperature type,etc. Applicable for any kind
of waste water, raw water, rain water, lake, river, dirty water, etc. It is also considered to be a green or environmentally
friendly pump equipment. We have the mature professional ability to supply sewage pump.
15hp 11kw submersible sewage pump parameters:
(It is regular sewage pump type of APK pump factory, please kindly choose one sewage pump type you would like
to inquiry, then we send quotation. Or contact us directly.)
| Outlet diameter | Model | Discharge flow | Head lift | Power | Speed |
| mm | WQ type | m3/h | m | kw | hp | r/min |
| 100 | WQ100-15-7.5 | 100 | 15 | 7.5 | 10 | 1450 |
| 150 | WQ145-9-7.5 | 145 | 9 | 7.5 | 10 | 1450 |
| 100 | 100WQ100-25-11 | 100 | 25 | 11 | 15 | 1450 |
| 150 | 150WQ130-15-11 | 130 | 15 | 11 | 15 | 1450 |
| 200 | 200WQ300-7-11 | 300 | 7 | 11 | 15 | 1450 |
| 100 | 100WQ100-30-15 | 100 | 30 | 15 | 20 | 1450 |
| 150 | 150WQ100-30-15 | 100 | 30 | 15 | 20 | 1450 |
| 200 | 200WQ220-12-15 | 220 | 12 | 15 | 20 | 1450 |
| 100 | 100WQ100-35-18.5 | 100 | 35 | 18.5 | 25 | 1450 |
| 150 | 150WQ180-20-18.5 | 180 | 20 | 18.5 | 25 | 1450 |
| 200 | 200WQ250-15-18.5 | 250 | 15 | 18.5 | 25 | 1450 |
| 250 | 250WQ400-7-18.5 | 400 | 7 | 18.5 | 25 | 1450 |
| 100 | 100WQ100-40-22 | 100 | 40 | 22 | 30 | 1450 |
| 150 | 150WQ180-25-22 | 180 | 25 | 22 | 30 | 1450 |
| 200 | 200WQ300-15-22 | 300 | 15 | 22 | 30 | 1450 |
| 250 | 250WQ450-7-22 | 450 | 7 | 22 | 30 | 1450 |
| 150 | 150WQ160-45-30 | 160 | 45 | 30 | 40 | 1450 |
| 200 | 200WQ400-13-30 | 400 | 13 | 30 | 40 | 1450 |
| 250 | 250WQ600-9-30 | 600 | 9 | 30 | 40 | 1450 |
| 300 | 300WQ850-7-30 | 850 | 7 | 30 | 40 | 1450 |
| 150 | 150WQ200-30-37 | 200 | 30 | 37 | 50 | 1450 |
| 200 | 200WQ350-25-37 | 350 | 25 | 37 | 50 | 1450 |
| 250 | 250WQ600-12-37 | 600 | 12 | 37 | 50 | 1450 |
| 300 | 300WQ800-10-37 | 800 | 10 | 37 | 50 | 1450 |
| 350 | 350WQ1000-8-37 | 1000 | 8 | 37 | 50 | 1450 |
| 150 | 150WQ180-45-45 | 180 | 45 | 45 | 60 | 1450 |
| 200 | 200WQ400-25-45 | 400 | 25 | 45 | 60 | 1450 |
| 250 | 250WQ600-15-45 | 600 | 15 | 45 | 60 | 1450 |
| 300 | 300WQ800-12-45 | 800 | 12 | 45 | 60 | 1450 |
| 350 | 350WQ1200-8-45 | 1200 | 8 | 45 | 60 | 1450 |
| 200 | 200WQ400-30-55 | 400 | 30 | 55 | 75 | 1450 |
| 250 | 250WQ600-20-55 | 600 | 20 | 55 | 75 | 1450 |
| 300 | 300WQ800-15-55 | 800 | 15 | 55 | 75 | 1450 |
| 350 | 350WQ1100-10-55 | 1100 | 15 | 55 | 75 | 1450 |
| 250 | 250WQ600-25-75 | 600 | 25 | 75 | 100 | 1450 |
| 300 | 300WQ800-20-75 | 800 | 20 | 75 | 100 | 1450 |
| 350 | 350WQ1300-12-75 | 1300 | 12 | 75 | 100 | 1450 |
Submersible sewage pump applications:
1. Widely for drawing waste water, raw water, river, lake, etc
2. Used for sewage treatment
Submersible sewage pump specifications:
1. Outlet diameter: 50mm-350mm
2. Discharge flow: 5-1300m3/h
3. Head lift: 5-200m
4. Power: 0.75-75kw
5. Voltage: 380v/420v or another
6. Speed: 2900rpm 1450rpm

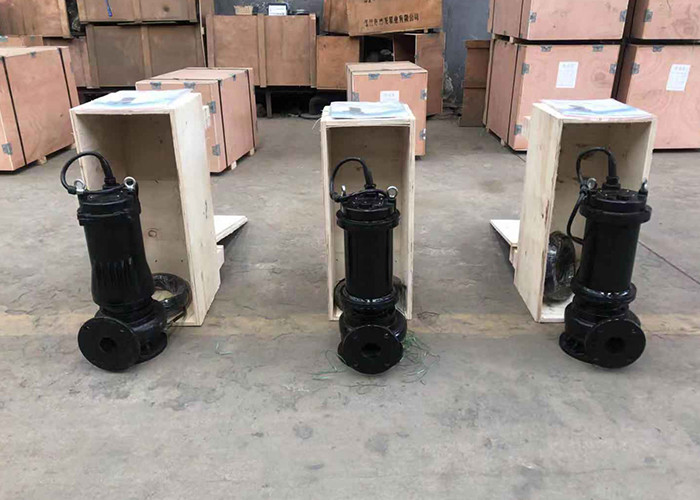

Package&Shipping
1. Over the sea: submersible sewage pumps are suggested to be shipped with wooden case to promise safe deliver
2. Over the air: faster and more expensive with shipping cost.
FAQ:
1. What is your MOQ?
Normally our MOQ for each submersible sewage pump type is 1 piece. However, if more quantity, we will have a discount.
2. What is your deliver time?
We will deliver in 15-25 work days. Also, welcome to our factory
3. Could we have a testing video and techinical data?
Yes, of course. We will test each submersible sewage pump before deliver to promise quality. All we have testing video.
If the submersible pump is in a tender, we could provide all for your business
4. Can you accept mixed products in one container?
Yes, we accept for sure. And if you have your own shipping forwarder, it is also available.
