chinese industrial borehole pumps 8 10 inch 22kw sea water submersible pump
1. Pump details of sea water submersible pump
Sea water submersible pump mainly drawing sea water, but seawater is corrosive medium, so we recommend stainless steel material. APK pump factory main stainless steel material for sea water have stainless steel 304, stainless steel 316, stainless steel 316l, duplex stainless steel, stainless steel 904, anti-corrosive.
22kw sea water submersible pump performance range:
- Pump diameter: 8 10 12 inch
- Flow: 18-257m3/h
- Head: 18-232m
- Power: 22kw 30hp
- Voltage: 380v 440v 600v or another
- Material: ss304 /ss316 /ss316l /duplex stainless/ss904
2. Pump specifications of sea water submersible pump spares material:
- Impeller: stainless steel (304, 316, 316L, duplex stainless)
- Pump shaft: stainless steel 316L
- Sealing ring: stainless steel
- Inlet section: SS304, SS316, SS316L
- Coupling: stainless steel
- Flange: SS304, SS316, SS316L
- *Pump material could be changed based on your request.
3. Applications of sea water submersible pump
-widely for clean water, sea water, salt water
-Used for drawing seafood factory, sea water desalination, seawater offshore drilling platform
4. Advantages of sea water submersible pumps:
-no pollution
-strong corrosive resistant
-18 month quality warranty or more
-long life service time
-ODM OEM(voltage, material, etc)
-compared with European quality
-high efficiency
One part of 22kw sea water submersible pump parameters:
| Pump diameter | Model | Power | Flow | Head |
| Inch (") | QJ Series | kw | hp | m3/h | m |
| 8" | 200QJ20-189/14 | 22 | 30 | 18-22 | 160-217 |
| 8" | 200QJ20-202/15 | 22 | 30 | 18-22 | 172-232 |
| 8" | 200QJ25-168/12 | 22 | 30 | 23-27 | 140-195 |
| 8" | 200QJ25-182/13 | 22 | 30 | 23-27 | 150-210 |
| 8" | 200QJ32-128/8 | 22 | 30 | 29-35 | 106-150 |
| 8" | 200QJ32-130/10 | 22 | 30 | 29-35 | 108-155 |
| 8" | 200QJ32-143/11 | 22 | 30 | 29-35 | 121-170 |
| 8" | 200QJ32-144/9 | 22 | 30 | 29-35 | 123-172 |
| 8" | 200QJ40-117/9 | 22 | 30 | 37-43 | 94-140 |
| 8" | 200QJ50-90/6 | 22 | 30 | 46-54 | 70-108 |
| 8" | 200QJ50-91/7 | 22 | 30 | 46-54 | 73-110 |
| 8" | 200QJ63-70/5 | 22 | 30 | 58-68 | 60-82 |
| 8" | 200QJ80-66/6 | 22 | 30 | 74-86 | 56-75 |
| 8" | 200QJ100-45/3 | 22 | 30 | 80-120 | 42-47 |
| 10" | 250QJ63-80/4 | 22 | 30 | 58-68 | 68-92 |
| 10" | 250QJ80-60/3 | 22 | 30 | 74-86 | 51-69 |
| 10" | 250QJ160-30/2 | 22 | 30 | 148-172 | 25-35 |
| 12" | 300QJ240-22/1 | 22 | 30 | 223-257 | 18-25 |
Supply Ability: 8595 pieces per month

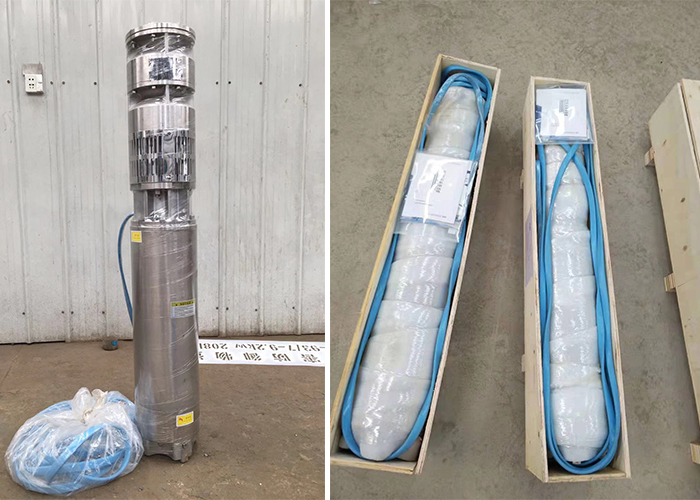

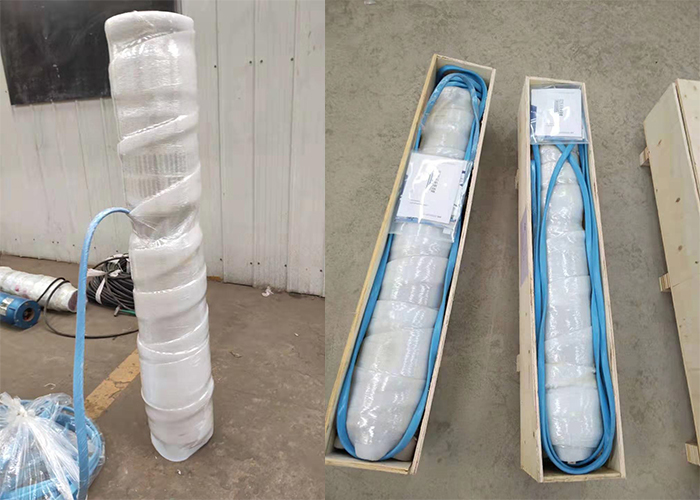

Packaging&Delivery
Packaging Details: wooden case
Lead Time : About 7 - 15 days after confirmed the order
Port: Shanghai or Qingdao
5. FAQ of sea water submersible pump
1) Can I have a sample order?
Yes, we welcome sample order to test and check quality
Mixed submersible pump samples are acceptable
2) What is the lead time?
Sample needs about 7 days prepared;mass production time needs 10-25 days
3) Do you have any MOQ limit?
Our MOQ is 1 piece
Port: Shanghai or Qingdao port
4) What submersible pump details should I let you know if I would like to get a quotation?
The submersible pump details(power, flow, head, voltage, vertical or horizontal) and the quantity
